40Ton 2200mm (ZDP-4022) E21 Hydraulic Plate Press Brake

The model of this 40Ton hydraulic plate press brake is ZDP-4022 (WC67Y-40/2200),total steel-welded structure and stress elimination by vibration;High mechanical strength and strong rigidity;E21 as the simple CNC controller,it can control the movement of backgauge,achieving efficient and highly precise positioning;There are emergency stop buttons on E21 controller and foot switch,to protect personnel safety.




● Total steel welded structure and stress elimination by vibration.

● High mechanical strength and strong rigidity.

● Ram stroke hydraulic approaching downward,stable and reliable.

● E21 can control the movement of ram stroke and backgauge,achieving efficient and highly precise positioning.

● Wedge compensation on top punch clamping.

● Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision.

● 2 Sliding front sheet support arms mounted onto T slot of the bed.

● Segmented 88° top blade.

● Solid one block four face multi V die.

● Approved stable and reliable hydraulics.

● Stop fingers with milscale for plate bending machine.

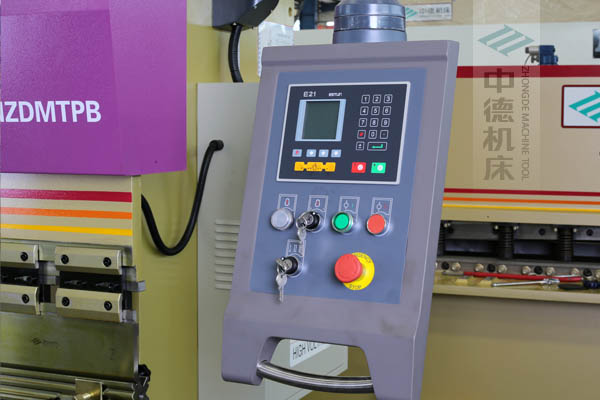

ZDP-4022 with E21 simple CNC controller.

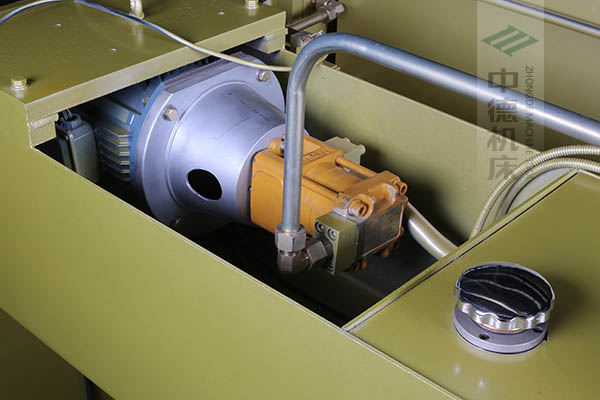

ZDP-4022 with half built-in type motor and oil pump,strong power and low noise.

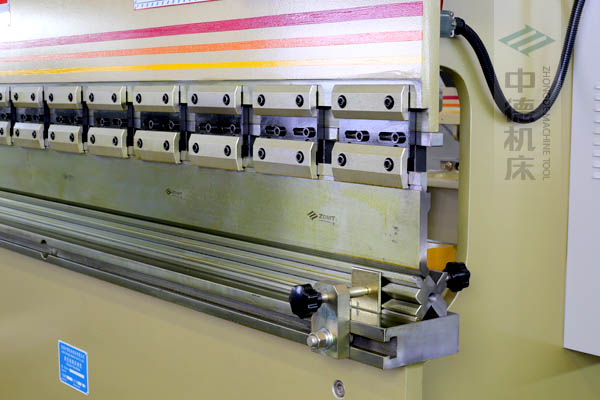

Standard multiple V moulds/dies for ZDP-4022,with multi-function.

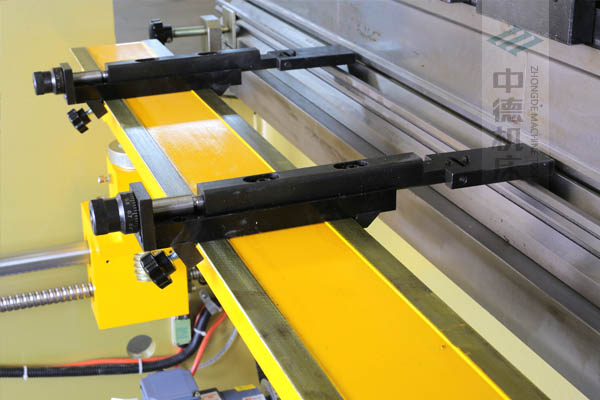

ZDP-4022 with hardening and high strength stop fingers,inverted triangle and locking device.

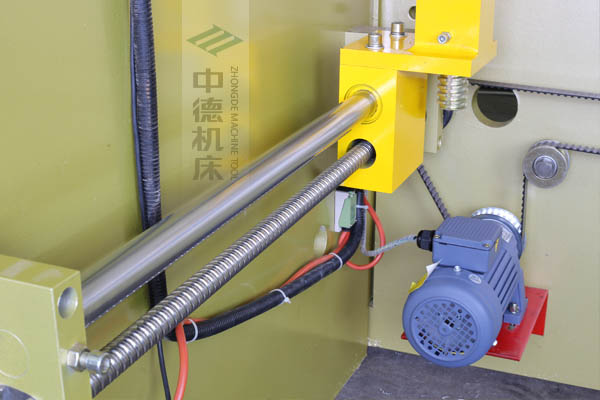

ZDP-4022 with high precision X axis structure,installed with ball screw for high precision.

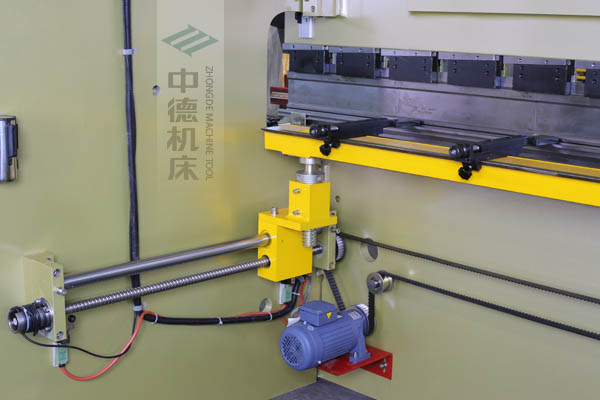

ZDP-4022 with high precision backgauge.

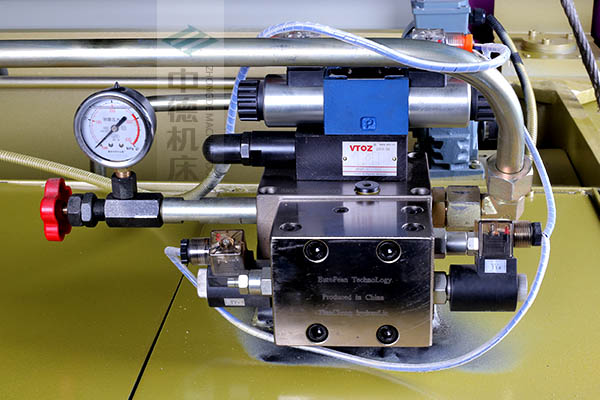

ZDP-4022 with high quality hydraulic valve,stable and durable.

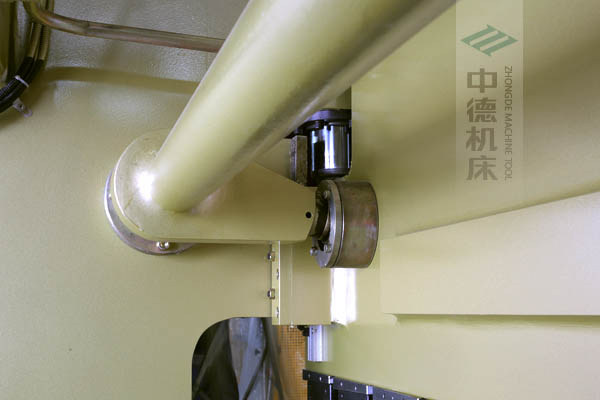

ZDP-4022 with high strength torsion bar synchronization device,using Harbin bearing,structure of tempering,strong and high precision.

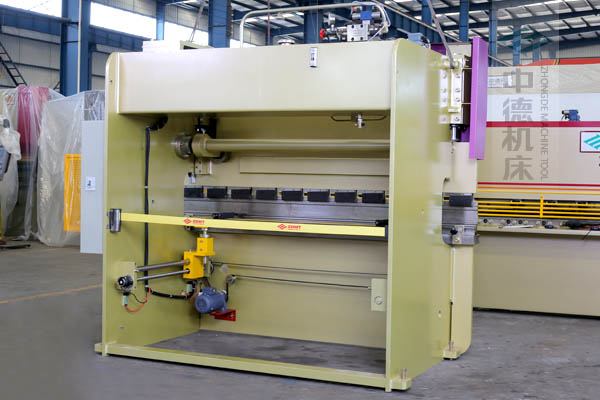

● Rear view of ZDP-4022 hydraulic plate press brake.

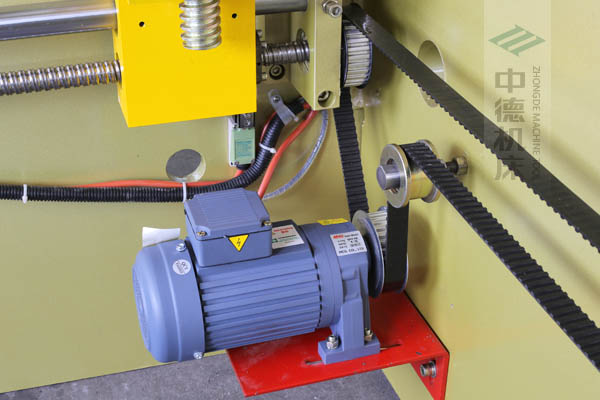

● The backgauge of ZDP-4022 with steel synchronous belt,high quality and no noise.

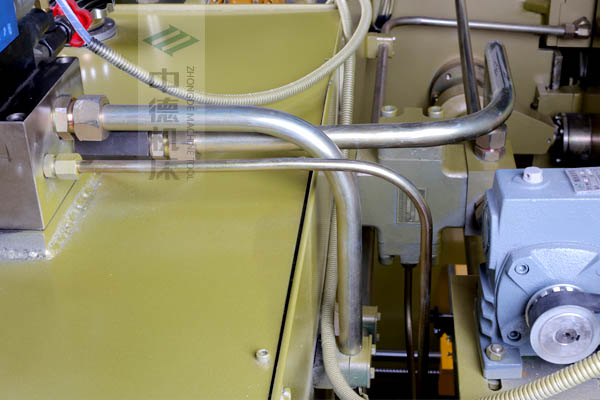

● ZDP-4022 with full-metal pipe shroud connection,nonexpansion when high temperature,can guarantee precision for long time.
